Description

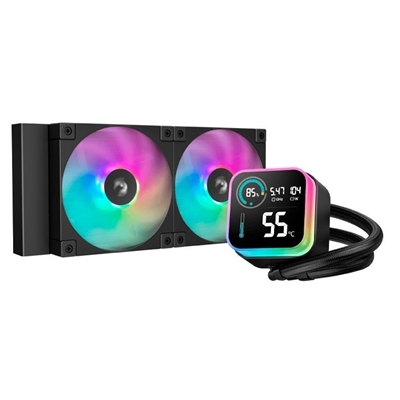

The DeepCool LQ240 is a cutting-edge 240mm all-in-one liquid CPU cooler that seamlessly combines high-performance cooling with customizable aesthetics. Designed for enthusiasts and gamers, it features a sleek low-profile design, a vibrant ARGB halo on the magnetic pump head, and dual FD12 ARGB fans, enhancing the visual appeal of any build.
At the heart of the LQ240 is DeepCool’s optimized 5th generation high-performance water pump, utilizing Field Oriented Control (FOC) Closed-Loop Control. This efficient 3-phase, 6-slot, 4-pole motor operates at speeds up to 3400 RPM, ensuring effective cooling for modern, power-hungry CPUs.
The integrated Segment LCD Display provides real-time system statistics, including CPU usage, frequency, TDP, and temperature status with color indicators. Through the DeepCreative software, users can customize the display and synchronize ARGB lighting effects with compatible motherboards.
Incorporating DeepCool’s patented Anti-Leak Technology, the LQ240 actively regulates internal pressure, releasing excess pressure when it surpasses atmospheric levels. This innovation extends the lifespan of the cooler and significantly reduces the risk of leaks.
With simplified installation and broad compatibility across Intel and AMD platforms, the LQ240 offers both exceptional performance and user-friendly features.
Key Features:
Segment LCD Display: Real-time monitoring of CPU usage, frequency, TDP, and temperature with color indicators.
DeepCreative Software: Customize display settings and synchronize ARGB lighting effects.
5th Generation Pump: Efficient cooling with a 3-phase, 6-slot, 4-pole motor operating up to 3400 RPM.
Dual FD12 ARGB Fans: High airflow and static pressure with Hydro Bearing technology.
Anti-Leak Technology: Active pressure regulation to prevent leaks and extend lifespan.
Simplified Installation: Easy mounting process compatible with latest Intel and AMD CPUs.
Compatibility:
Intel Sockets: LGA1851 / 1700 / 1200 / 1151 / 1150 / 1155
AMD Sockets: AM5 / AM4
Technical Specifications:
General:
Model Number: R-LQ240-BKLSMW-G-1
EAN: 6933412729150
Net Weight: 1530 g
Color: Black
Radiator:
Dimensions: 282 × 120 × 27 mm (L × W × H)
Material: Aluminum
Tube Length: 410 mm
Pump:
Dimensions: 89 × 76 × 64 mm (L × W × H)
Speed: 3400 RPM ±10%
Connector: 3-pin
Rated Voltage: 12 VDC
Rated Current: 0.35 A
Power Consumption: 4.2 W
Fans (2 × FD12 ARGB PWM):
Dimensions: 120 × 120 × 25 mm
Speed Range: 600–2400 RPM ±10%
Airflow: 72.04 CFM
Static Pressure: 3.48 mmAq
Noise Level: =38.71 dB(A)
Connector: 4-pin PWM
Bearing Type: Hydro Bearing
Rated Voltage: 12 VDC
Rated Current: 0.22 A
Power Consumption: 2.64 W per fan
LED & Display:
LED Type: Addressable RGB
LED Connector: 3-pin (+5V-D-G)
LED Rated Voltage: 5 VDC
LED Power Consumption: 2.4 W (Pump), 2.1 W (Fans ×2)
Display Type: LED Digital Display
Display Module Rated Voltage: 5 VDC
Display Module Rated Current: 0.08 A ±10%
Display Module Power Consumption: 0.4 W
Display Area: 53.9 × 49.15 mm
Software Support:
DeepCreative: Enables customization of the Segment LCD Display and synchronization of ARGB lighting effects with compatible motherboards.
Package Contents:
DeepCool LQ240 Liquid CPU Cooler
2 × FD12 ARGB PWM Fans
Mounting Hardware for Intel and AMD Sockets
User Manual
Warranty:
Duration: 5 Years
