Description

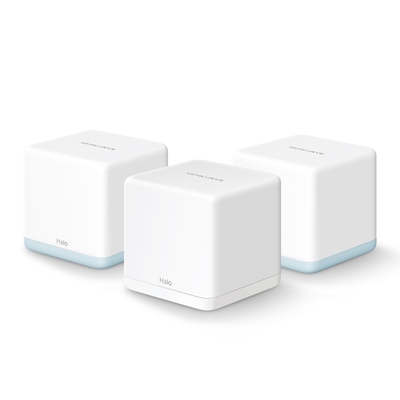

Mercusys Halo H1200G AC1200 Whole Home Mesh Wi-Fi System
One Unified Network
With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password.
Seamless Roaming
Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.
Whole Home Coverage
Blanket up to 2,800 ft² (260 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.
1.2 Gbps Dual Band WiFi
Halo H32G provides fast and stable connections up to 100 devices with speeds of up to 1,200 Mbps and works with major internet service providers (ISPs) and modems.
Easy App Control
Use the MERCUSYS App to quickly set up and manage your WiFi.
Flexible Mesh System
Use H30G and H30 to build a whole home mesh network.
*Please note that the Halo H series and S series cannot work together.
Specifications
Wireless
Wi-Fi (2.4 GHz)
300 Mbps on 2.4 GHz
Wi-Fi ( 5 GHz)
867 Mbps on 5GHz
Wireless Standards
IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz
Reception Sensitivity
2.4 GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm
5 GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK/WPA2-PSK
Mesh protocol
802.11k/v/r
Software
Operation Modes
Router, Access Point
Quality of Service
WMM
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Local Management, Remote Management, Multi-Managers
Firewall Security
SPI Firewall
Hardware
Dimensions (W X D X H)
3.5 x 3.5 x 3.5 in (88 x 88 x 88 mm)
Interfaces
Halo H1200G: 2x Gigabit Ports (WAN/LAN auto-sensing)
Halo H1200: 2x 10/100 Mbps Ports
Button
Reset button
